Last Updated on 23 May 2026 by Suffocation

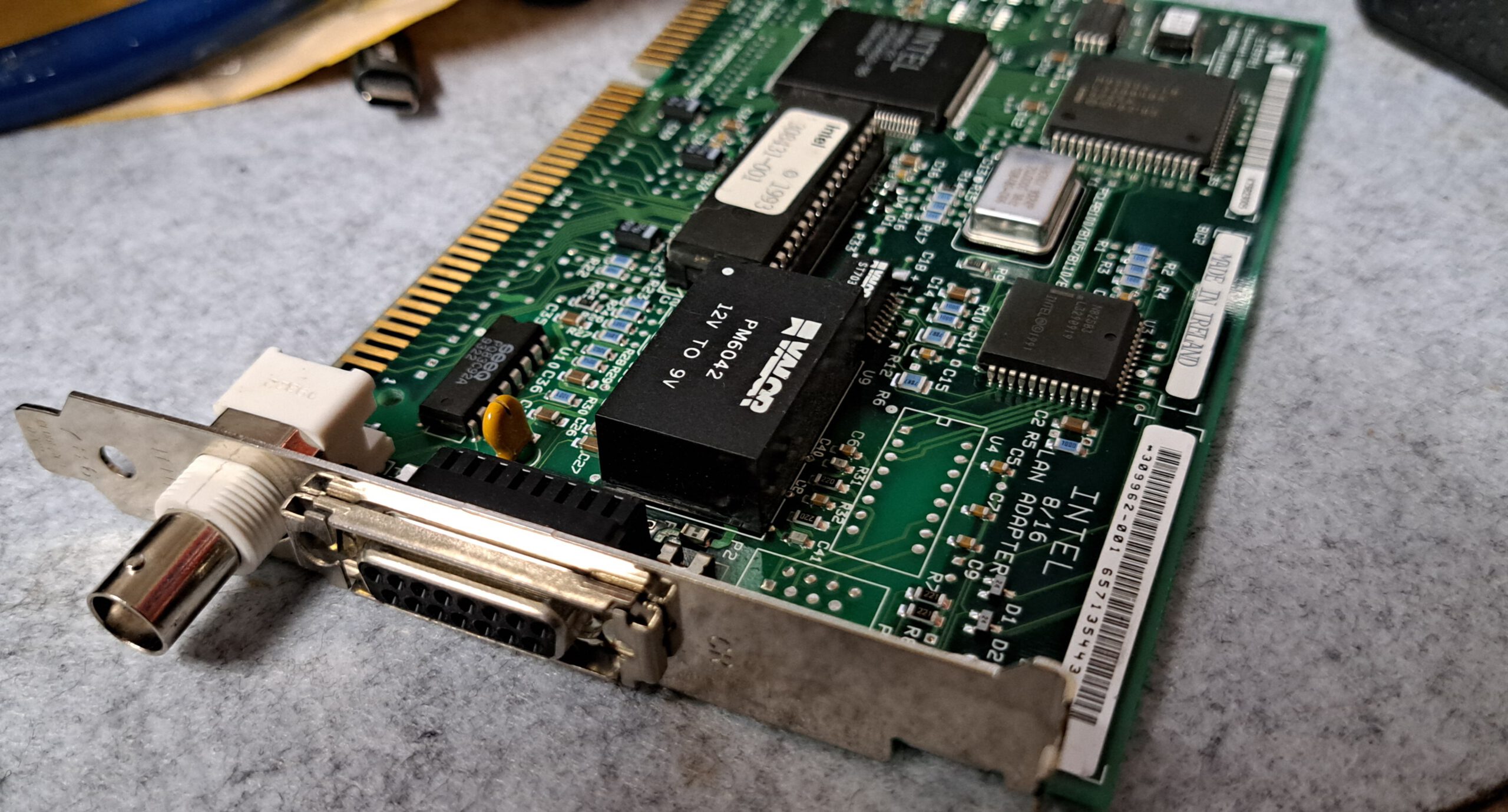

Isa16 Bit Netzwerkkarte mit BNC Thin Ethernet und 15 poligen SUB-D RG58 Anschluss.
Views
Facts
| Manufacturer | Intel |
|---|---|
| Designation | EtherExpress 8/16 |
| Chip | 201969-221 |
| Year of manufacture (integrated circuit card) | 1993 (1991) |
| 10Base2 (BNC) | X |
| 10 Base-T (RJ45)/AUI | X |
| 10 Base-T (RJ45) | |
| 100 Base X (RJ45) | |
| 1000 Base X (RJ45) | |
| Other connections | |
| Configuration | Config Tool |
| ROM Support | X |
| ROM Type | ? |
| ISA 8-bit | |
| ISA 16-bit | X |
| VLB | |
| PCI | |
| PCI-E | |
| Compatible with | |
| Compatible designation | |
User manual
Driver
| Operating system | Two | Window | Other | Pack/CD |
|---|---|---|---|---|
| Driver | Yes | 3.x, 95,NT | Novell, OS2 | Yes |
Disk Operating System
REM Autoexec.bat Intel EtherExpress 8/16 LAN Adapter
LH C\...\DOS\PAKDRV\EXP16.COM 0x60 Windows
Other
The entire driver package
Miscellaneous
Network types
https://www.fambach.net/?p=12059
Problems
No instructions and memory address unknown
If a driver is known, simply specify all addresses from 0x160-0x360 when loading. If the MAC address is not displayed as FF...FF, then the correct memory address should have been found.
Conclusion
| Description | Worth |
|---|---|
| Erfolgreich installiert | Yes |
| Price per piece | Weiss nicht mehr … |
| Function | Gut |
| Is it worth it | Ja – Funktioniert gut, gutes Konfigurationstool |
| Restrictions | fehlende 10BaseT RJ45 Buchse, aber mit Adapter möglich |
Related Posts
- Retro Net – Novell #738-149-00x
- Retro Net – UMC 9007F
- Retro Net – Compaq NC 3121 40236-006
- Retro Net – COGENT Data eMaster 960001-04 / DEC 21×4
- Retro Net – Realtek RTL8139x
- Retro Net – Viglen Ethernet Accelerator PN: 142640-420 Rev-01E
- Retro Net – 3Com Etherlink XL PCI 3C900B
- Retro Net – DLink DGE-528T
- Retro Net – Artisoft LANtastic
- Retro Net – 3Com Etherlink II/16
Sources
https://www.vogonswiki.com/index.php/Intel_8%E2%88%9516_LAN_Adapter
ftp://ftp.oldskool.org/pub/misc/Hardware/Intel/8_16 LAN ADAPTER
https://www.vogons.org/viewtopic.php?p=1190907&hilit=intel%2016#p1190907
Good places to get drivers
http://vogonsdrivers.com/
https://www.philscomputerlab.com
https://www.fambach.net/?p=12059
Log
| Date | Description |
|---|---|
| 04.02.2025 | Beitrag Erstellt / Veröffentlicht |
| 23.06.2025 | Kurz überarbeitet und übersetzt. |
