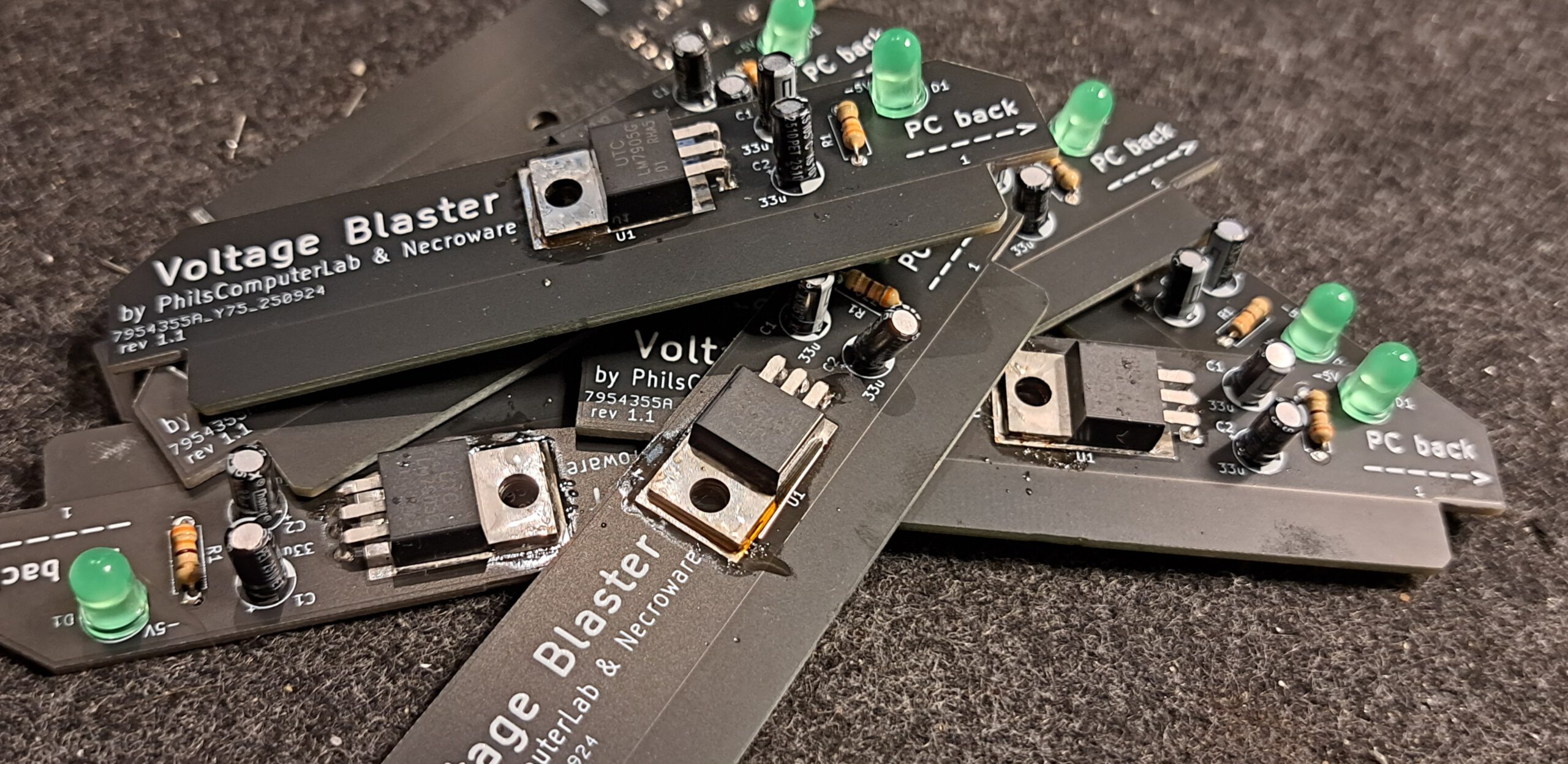

It is not a problem to operate old computers with AT power connectors using an adapter with a new ATX power supply. However, new power supplies usually do not generate the -5V that some sound and video cards require. The Voltage Blaster solves this problem. It is a small ISA 8-bit plug-in card whose task is to supply the -5V to the bus.
Thanks to Necroware for this project.
Link to the project
Views
Facts
- Provision of -5V on the ISA Bus
- Using the -12 Volt and a voltage regulator
- LED indicates if the -5V is present
Circuit diagrams
Documentation
No further information.
Assembly
Record
| Description | Worth |
|---|---|
| Gerber available | Yes |
| Gerber file | Link |
| Ordered where | JLCPCB |
| Piece | 30 |
| Price + Tax and Delivery | 25€ |
| Special features | Leedfree, Black |
Here the Gerber files are stored, please check the original page to see if there is anything newer.
Components
I ordered the components from Mouser; the price for one unit is approximately €3.
| Component | Size | Number | Description | Price € |
|---|---|---|---|---|
| U1 | LM7905G-TA3-T | 1 | Negative Voltage Regulator 6mA to 220V | 1,30 |
| C1, C2 | Elko, 33 uF | 2 | Electrolytic capacitor | 0.45 |
| D1 (optional) | LED, Green, 2V 5mm | 1 | LED | 0,08 |
| R1 (optional) | 330R | 1 | Resistance | 0,11 |
| Record | 1 | Record | 0,84 | |
| Summer | 2,77€ |
Structure
Variations
Order
- Resistance
- Voltage regulator (snip off directly after the thick part)
- LED
- Capacitors
Commissioning
Plug in and feel at ease. You might want to check the -5V pin on the ISA slot to make sure everything is okay before plugging in a card.
Miscellaneous
eBay
I've listed the remaining parts on eBay, €5.10 for the kit, €7.10 for the finished board.
Assembled for €10 including postage and packaging – https://www.ebay.de/itm/206324908879
As a kit for €7.10 incl. postage and packaging https://www.ebay.de/itm/206324928290
Data sheets
General Tips
Soldering points
Check the solder joints on the ICs again carefully, preferably with a microscope or magnifying glass, for short circuits and contact. Measure with a multimeter or continuity tester.
For small solder joints on through-hole components, use flux if possible; it makes life easier and increases the quality of the connection.
Problems
–
Conclusion
| Description | Worth |
|---|---|
| Successful | Yes / No |
| Price per piece | ~€3 (excluding labour and consumables) |
| Soldering time | 10 minutes |
| Function | Good – but has an ISA slot |
| Is it worth it | Yes – if you want to use a Soundblaster 2.0 with an ATX power supply, for example, you can't avoid such a solution. |
| Restrictions | Occupies an ISA slot; there are also solutions that can be integrated into the ATX cable. |
